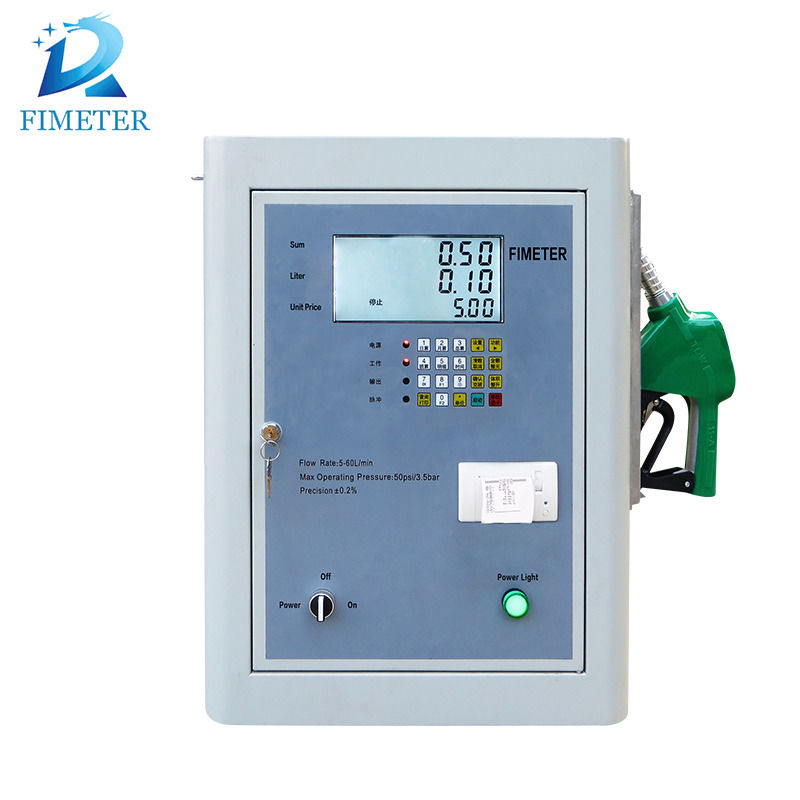

BJJ-20-AHDY Small Mini Caravan Diesel Kerosene Fuel Dispenser

Name: BJJ-20-AHDY Small Mini Caravan Diesel Kerosene Fuel Dispenser
Brand: FIMETER
SKU: BJJ-20-AHDY
Rating: 4.8 (136 reviews)

Product Details

Place of Origin: Johor, Malaysia

Brand Name: FIMETER

Model Number: BJJ-20-AHDY

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Packaging Details: 1 Piece by Non-fumigation wooden case;

Supply Ability: 2000 Set/Sets per Month If you need more, please contact with us for further negotiation

Get Best Price

Product Details

Product Description

Highlight:

Place Of Origin:	Johor, Malaysia	Brand Name:	FIMETER
Model Number:	BJJ-20-AHDY	Available Oil:	Gasoline, Diesel, Kerosene, Water And Other Liquid
Accuracy:	0.2%	Voltage:	12V/24V/220V
Flow Range:	20-80L/Min	Max.work Pressure:	4 Bar
Lift/Suction:	10m/4m	Inhalation Caliber:	25mm
Discharge Caliber:	20mm	Color:	White Grey
Single Gauge Number:	0.0-9999.9L

Place Of Origin:	Johor, Malaysia
Brand Name:	FIMETER
Model Number:	BJJ-20-AHDY
Available Oil:	Gasoline, Diesel, Kerosene, Water And Other Liquid
Accuracy:	0.2%
Voltage:	12V/24V/220V
Flow Range:	20-80L/Min
Max.work Pressure:	4 Bar
Lift/Suction:	10m/4m
Inhalation Caliber:	25mm
Discharge Caliber:	20mm
Color:	White Grey
Single Gauge Number:	0.0-9999.9L

BJJ-20-AHDY Small Mini Caravan Diesel Kerosene Fuel Dispenser

Product Description

Product Application

Owns many patents, which is developed by Anhui ruiling meter manufacturing co.,ltd. This model of fuel dispenser is widely used in industrial and mining enterprises, middle and small oil depot, gas station for transporting diesel and kerosene etc. This Anti- Explosion fuel dispenser owns many advantages, for instance, reasonable design, compact structure, small and fine, convenient for carry, high accuracy, big flow rate convenient for usage, easy for maintenance, and so on.

Our design is much more compact, layout is more reasonable,increasing the operation efficiency.

SPECIFICATIONS FOR GASOLINE FUEL DISPENSER
Model No.:	AHDY	Accuracy:	±0.2%
Flow range:	20-80L/min	Max.pressure:	4 Bar
Voltage:	12v/24v/220v/380v	Single Range:	0.0-99999.9L
Suction/Lift:	25m/25m	Accumulative Range:	0-99999L
Total weight:	78.5kg	Range of Price:	0.00-$99.99
Temperature range:	-20°c-50°c	Total Amount Range:	0-$99999
Inhalation caliber:	25mm	Measure Minimum:	5L
Discharge caliber:	20mm	Size:	550485720mm
Medium	Gasoline, Petrol, Diesel, Kerosene, Water, Methanol and other liquid.

Main Features

For the reason that our First generation mechanical fuel dispenser has been copied, our company updated the products series with 10 updated points under the price not increased.

1. More attracting appearance;
2. Increasing the thickness of the shell;
3. Good at Resistant high temperature: 50℃ Test;
4. With functions of integer and non integer quantitative refueling;

5.The standard of excellent accuracy measuring accuracy can reach 0.2%;
6. Professional All of our fuel dispenser are Anti-Explosion type design;
7. Two way control valves to ensure the precise control of a small amount of fuel;

8. Our design is much compact, layout is more reasonable, increasing the operation efficiency;
9. With Double-layer steel wire mesh, wear-resisting, corrosion resistance, pressure resistant tubing;
10. Choosing new type electromagnetic switch,greatly enlarging using safety and stability and prolong the using life.

Factory Show

Canton Fair

120th Canton Fair

Meet every year of Canton Fair

121th Canton Fair

and Still to be continued......

122th Canton Fair

Detailed Images

Fuel Dispensers Size Map Show.

Gasoline Ticket Printer Fuel Dispensers

20-80 Liter/min;

Accuracy is 0.2%;

Anti-Explosion Type;

Ticket Printer with English words and number;

Also can design for diesel, kerosene, water and other liquid.

Kerosene Ticket Printer Fuel Dispensers

20-65 Liter/min;
Accuracy is 0.2%;
Noiseless Refueling Type;
Ticket Printer with English words and number;
Also can design for diesel, kerosene, water and other liquid.

Diesel Ticket Printer Fuel Dispensers

20-80 Liter/min;

Accuracy is 0.3%;
Noiseless Refueling Type;
Ticket Printer with English words and number;

Also can design for diesel, kerosene, water and other liquid.

Water Ticket Printer Fuel Dispensers

20-45 Liter/min;
Accuracy is 0.5%;
Noiseless Refueling Type;
Ticket Printer with English words and number;

Also can design for diesel, kerosene, water and other liquid.

Standard Configuration

1 Set Manual;

5M Inlet Pipe;

5M Output Pipe;

1 Set 11A Automatic Fuel Nozzle.
