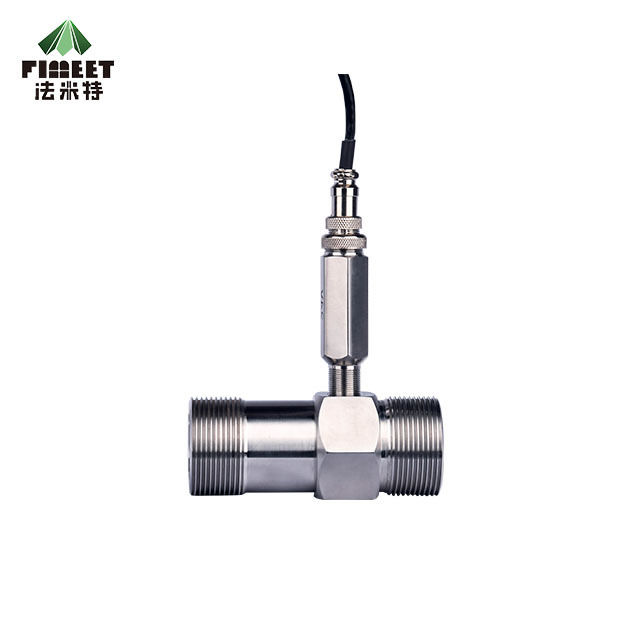

Diesel Flowmeter Small Turbine Flowmeter For Liquid Petroleum LWGY

Name: Diesel Flowmeter Small Turbine Flowmeter For Liquid Petroleum LWGY
Brand: FIMEET
SKU: LWGY
Rating: 4.7 (191 reviews)

Product Details

Place of Origin: Anhui, China

Brand Name: FIMEET

Model Number: LWGY

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Packaging Details: 1 set/corrugated box

Get Best Price

Product Details

Product Description

Highlight:

Place Of Origin:	Anhui, China	Brand Name:	FIMEET
Model Number:	LWGY	Type:	Variable Area Water Flowmeters, Variable Area Oil Flowmeters
Ambient Temperature:	-20~+55â„ƒ	Fluid Temperature:	-20~+120â„ƒ
Accuracy:	0.5%	Supply Power:	Voltage:+5-24VDC,Currentâ‰¤10mA
Explosion Type:	EXdIIBT4	Product Name:	Low Cost Totalizator Digital Analog Indicator Flow Meters
Output:	4-20mA/ Pulse	Name:	Flow Meter
Connection:	Flange Clamp Screw	Warranty:	One Year

Place Of Origin:	Anhui, China
Brand Name:	FIMEET
Model Number:	LWGY
Type:	Variable Area Water Flowmeters, Variable Area Oil Flowmeters
Ambient Temperature:	-20~+55â„ƒ
Fluid Temperature:	-20~+120â„ƒ
Accuracy:	0.5%
Supply Power:	Voltage:+5-24VDC,Currentâ‰¤10mA
Explosion Type:	EXdIIBT4
Product Name:	Low Cost Totalizator Digital Analog Indicator Flow Meters
Output:	4-20mA/ Pulse
Name:	Flow Meter
Connection:	Flange Clamp Screw
Warranty:	One Year

Diesel Flowmeter Small Turbine Flowmeter For Liquid Petroleum LWGY

Product Description

Product Application

Owns many patents, which is developed by Anhui ruiling meter manufacturing co.,ltd. This model of Flow Meters widely used in industrial and mining enterprises, middle and small oil depot, gas station for transporting diesel and kerosene etc. This Anti- Explosion Flow Meters owns many advantages, for instance, reasonable design, compact structure, small and fine, convenient for carry, high accuracy, big flow rate convenient for usage, easy for maintenance, and so on.

Our design is much more compact, layout is more reasonable,increasing the operation efficiency.

SPECIFICATIONS FOR TURBINE FLOWMETER
Measured medium	No impurities, low viscosity, no strong corrosive liquid
Gauge diameter (mm) and connection mode	Flange type	DN15-DN200
		Threaded connection type	DN4-DN50
		Clamp connection type	DN4-DN200
Precision grade	±1%R, ±0.5%R, ±0.2%R, (tailor-made)
Flow range	different caliber with different flow range
Range than	1:10；1:15；1:20
Sensor material	304 stainless steel, 316 (L) stainless steel, etc
Medium temperature:	-20℃~+80℃
Signal output function	Pulse signal, 4~20mA signal
Communication output function	RS485 communication, HART agreement, etc
Working power supply	A. External power supply: +24VDC±15%, suitable for 4~20mA output, pulse output, RS485, etc B.Internal power supply: a group of 3.6V lithium batteries, which can work normally when the battery voltage is 3.0V~3.6V.
Electrical interface	M20 "1.5 Internal thread (NPT thread must be customized)
Explosion-proof grade	ExdIICT6 Gb
Protection grade	IP65 or higher (customizable)

Measuring range of liquid turbine flowmeter
Meter diameter(mm)	Normal flow range(m3/h)	Extended flow range(m3/h)	Conventional connection mode and withstand voltage grade	Special pressure class(MPa)	Pick up traffic(m3/h)			Maximum pressure loss +1(KPa)
4	0.04~0.25	0.04~0.4	Screw installation,6.3MPa	Flange installation,2.5MPa	Clamp connection type,≤42MPa	0.02	120
6	0.1~0.6	0.06~0.6	Screw installation,6.3MPa	Flange installation,2.5MPa			0.05	80
10	0.2~1.2	0.15~1.5	Screw installation,6.3MPa	Flange installation,2.5MPa			0.07	50
15	0.6~6	0.5~5	Screw installation,6.3MPa	Flange installation,2.5MPa			0.35	35
20	0.8~8	0.45~9	Screw installation,6.3MPa	Flange installation,2.5MPa			0.3	35
25	1~10	0.5~10	Screw installation,6.3MPa	Flange installation,2.5MPa			0.4	35
32	1.5~15	0.8~15	Screw installation,6.3MPa	Flange installation,2.5MPa			0.6	35
40	2~20	1~20	Screw installation,6.3MPa	Flange installation,2.5MPa			0.6	35
50	4~40	2~40	Flange installation,2.5MPa	Screw installation,1.6MPa	Clamp connection type,≤26MPa	1	35
65	7~70	5~70	Flange installation,1.6 MPa	Screw installation,1.6MPa			4	25
80	10~100	7~100	Flange installation,1.6 MPa	Screw installation,1.6MPa			5	25
100	20~200	10~200	Flange installation,1.6 MPa	-	Clamp connection type,≤15MPa	8	25
125	25~250	13~250	Flange installation,1.6 MPa	-			10	25
150	30~300	15~300	Flange installation,1.6 MPa	-			12	25
200	80~800	40~800	Flange installation,1.6 MPa	-	Clamp connection type,≤11MPa	20	25
Note: +1 maximum pressure loss is the pressure loss of the flowmeter working at the maximum flow point, medium is water, room temperature. Products with +2 accuracy level 0.2 need to be customized, and the flow range is smaller than the normal range.

Main Features

1. Liquid turbine flowmeter range is wide, large diameter o up to 1:20, small diameter is 1:10.
2. The structure is compact and light, easy installation and maintenance, large flow capacity.

3. Good repeatability, high precision, regular calibration can obtain 0.05-0.2% precision.

4. For the high pressure measurement, the instrument body without holes, easily made high pressure type instrument.

5. High accuracy : General up to ±1%R, can reach ±0.5%R. The high precision with 0.2%R can be customized specially.
6. Liquid turbine flow meter can be made into Plug-in type,suitable for large dia. measurement, small pressure loss, low price.

7. Frequency signal pulse input, used to measure the amount and connecting with computer, no zero drift, strong anti-interference ability.

Factory Show

Canton Fair

120th Canton Fair

Meet every year of Canton Fair

121th Canton Fair

and Still to be continued......

122th Canton Fair

Detailed Images

Machine Parts

Name: Turbine Flowmeter;

Brand: FIMEET;

Imported Chip;

Quality Assurance.

Machine Parts

Rotate 540°；

Header Rotary Joint.

Machine Parts

A Key Reset Device.

Machine Parts

304 Stainless Steel Materials.

Machine Parts

Fine Workmanship;

Shown Brand and Technical Date at Head.
