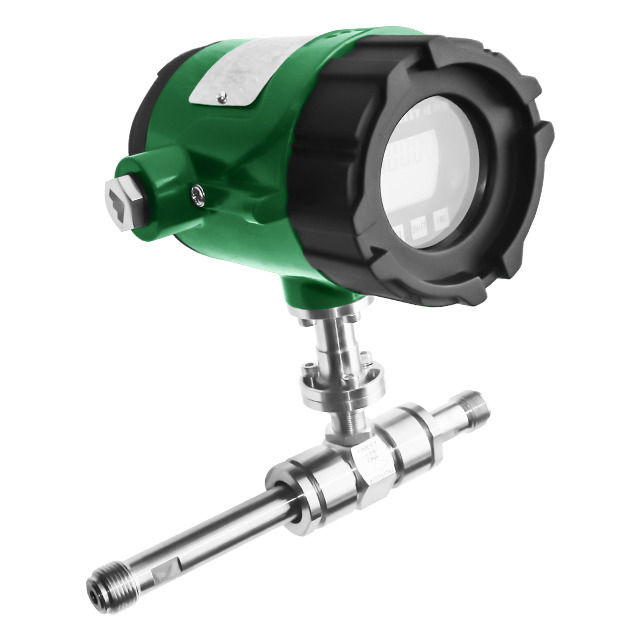

Heat Transfer Hydraulic Oil Diesel DN50 High Temperature Turbine Flow Meter

Name: Heat Transfer Hydraulic Oil Diesel DN50 High Temperature Turbine Flow Meter
Brand: FIMEET
SKU: LWGY-C
Price: 523.00 USD
Availability: InStock
Rating: 4.7 (113 reviews)

Product Details

Place of Origin: Anhui, China

Brand Name: FIMEET

Model Number: LWGY-C

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: $523.00(1 - 19 Sets) $423.00(>=20 Sets)

Packaging Details: 1pcs by corrugated paper case

Supply Ability: 100 Piece/Pieces per Day

Get Best Price

Product Details

Product Description

Warranty:	1 Years	Customized Support:	OEM
Place Of Origin:	Anhui, China	Brand Name:	FIMEET
Model Number:	LWGY-C	Type:	Variable Area Oil Flowmeters, Variable Area Water Flowmeters
Ambient Temperature::	(-20~+55)â„ƒ	Fluid Temperature::	(-20~+120)â„ƒ
Accuray:	Â±0.5%	Type::	Intellgent Display
Nomina Dia.::	DN(2-200)	Flow Range::	Different Caliber With Different Flow Range
Connection:	Screw Thread/flange/clamp	Ex Grade::	Ex D IIC T6 Gb
No,inal Pressure::	6.3MPa 1.6MPa-2.5MPa	Protection Grade::	IP65

Warranty:	1 Years
Customized Support:	OEM
Place Of Origin:	Anhui, China
Brand Name:	FIMEET
Model Number:	LWGY-C
Type:	Variable Area Oil Flowmeters, Variable Area Water Flowmeters
Ambient Temperature::	(-20~+55)â„ƒ
Fluid Temperature::	(-20~+120)â„ƒ
Accuray:	Â±0.5%
Type::	Intellgent Display
Nomina Dia.::	DN(2-200)
Flow Range::	Different Caliber With Different Flow Range
Connection:	Screw Thread/flange/clamp
Ex Grade::	Ex D IIC T6 Gb
No,inal Pressure::	6.3MPa 1.6MPa-2.5MPa
Protection Grade::	IP65

Heat Transfer Hydraulic Oil Diesel DN50 High Temperature Turbine Flow Meter

Product Description

MAIN FEATURES

1. Liquid turbine flowmeter range is wide, large diameter o up to 1:20, small diameter is 1:10. 2. Good repeatability, high precision, regular calibration can obtain 0.05-0.2% precision. 3. Frequency signal pulse input, used to measure the amount and connecting with computer, no zero drift, strong anti-interference ability. 4. High accuracy : General up to 1%R, can reach 0.5%R. The high precision with 0.2%R can be customized specially. 5. Liquid turbine flow meter can be made into Plug-in type,suitable for large dia. measurement, small pressure loss, low price.

LCD(liquid crystal display)

Low power LCD display
The reading is clear at a glance
Lithium battery power supply

Smart chip

High-precision

Anti-interference

Good stability

Strong data processing

Intelligent chip;
Strong data processing capacity Widely feasibility
Quality Assurance.
Adaptation for many environments
Spectral signal processing
Achieve normal running even under strong interference condition.

Fine impeller

Integrated Turbine
True reliable signal
Accurate control of flow rate

Feedback & Application

Application

Petrochemical

Metal smelting

Environmental

Electricity

Food

Pharmaceutical

Packing & Delivery

By Sea	Delivery from Any seaport of China if customer has special requirements
By Air	Departure from Any Airport of China if customer has special requirements
By Express	By any Express of China if customer has special requirements
Delivery time	2~7days(usually by express door to door(DHL, UPS, Fedex, TNT etc.)

Exhibition

120th Canton Fair

Meet every year of Canton Fair

120th Canton Fair

and Still to be continued......

120th Canton Fair

Factory&Technology

Anhui Ruiling metrology Manufacturing Co., Ltd., established in 2006, is a national high-tech enterprise with industrial sensors and extended applications, focusing on R & D, manufacturing and sales of various industrial sensors, intelligent measurement integrated equipment, Internet of things applications, etc. The company was listed in Anhui Stock Exchange Center in May 2015. The company has passed ISO9001 quality management certification and GB / t29490-2013 intellectual property management system certification. It has established close cooperation with Tianjin University, Hebei University, Hefei University of technology and other colleges and universities. At present, the company's R & D personnel account for 33% of the total number of employees; employees with bachelor's degree or above account for 40% of the total number of employees; the annual R & D investment accounts for 11% of the annual sales.

Factory show

Installation precautions

1)The instrument installation adopts flange connection,thread connection and clamping type. 2) The liquid flow direction should be the same with the direction indicating arrow on the sensor shell. And the length of upstream straight pipe should ≥ 20DS, and the length of downstream straight pipe should ≥ 5DS(DS is the measured inner diameter of the measured pipe). 3) in order not to affect the normal transport of liquids during maintenance, should Install bypass pipes outside the straight section at both ends of the sensor. ( this is just for some certain business circumstance , choose according to your actual situation . ) 4) when there is a strong electromagnetic interference around, must be equipped with a custom Blockers.
