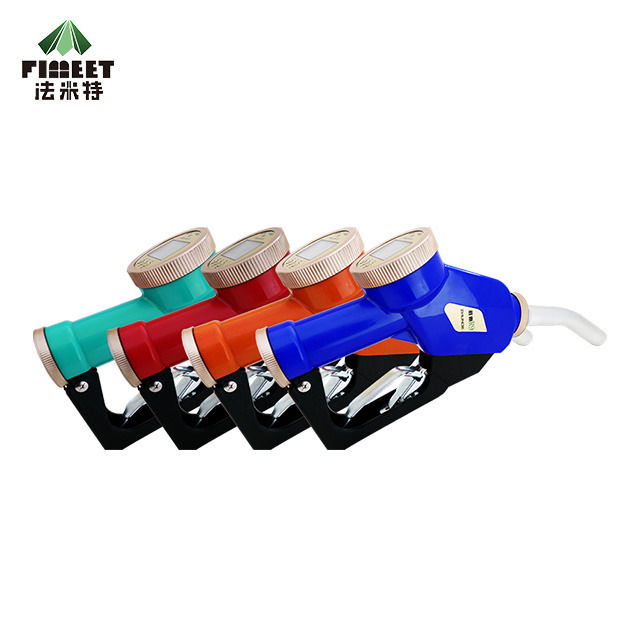

R9LCD Display Fuel Gauge Fuel Petrol Diesel Fuel Nozzle 420280110mm

Name: R9LCD Display Fuel Gauge Fuel Petrol Diesel Fuel Nozzle 420*280*110mm
Brand: FIMETER
SKU: ALL, BJJ-20-A Methanol, Water, Diesel, Gasoline
Price: 50.00 USD
Availability: InStock
Rating: 4.9 (200 reviews)

Product Details

Place of Origin: Anhui, China

Brand Name: FIMETER

Model Number: ALL, BJJ-20-A Methanol, Water, Diesel, Gasoline

Payment & Shipping Terms

Minimum Order Quantity: 10 Pieces

Price: $50.00(10 - 99 Pieces) $45.00(>=100 Pieces)

Packaging Details: one pc by plastic box, 15pcs by wooden case/carton

Get Best Price

Product Details

Product Description

Highlight:

OE NO.:	N/A	Size:	420280110mm
Warranty:	1 Years	Place Of Origin:	Anhui, China
Brand Name:	FIMETER	Car Model:	ALL
Model Number:	BJJ-20-A Methanol, Water, Diesel, Gasoline	Materal::	Stainless Steel And Aluminium Alloy
Colour::	Red/yellow/blue/orange	Metering Show Way::	LCD
Min./Max.Flow Rate(L/Min)::	15/60	Max.pressure::	0.4MPa
Metering Accuracy::	Â±0.5%	Flowmeter Type::	Speed-styled
Operating Principle::	Turbine Flow Meter	Availabl Medium ::	Gasoline/diesel/kerosene/water

OE NO.:	N/A
Size:	420280110mm
Warranty:	1 Years
Place Of Origin:	Anhui, China
Brand Name:	FIMETER
Car Model:	ALL
Model Number:	BJJ-20-A Methanol, Water, Diesel, Gasoline
Materal::	Stainless Steel And Aluminium Alloy
Colour::	Red/yellow/blue/orange
Metering Show Way::	LCD
Min./Max.Flow Rate(L/Min)::	15/60
Max.pressure::	0.4MPa
Metering Accuracy::	Â±0.5%
Flowmeter Type::	Speed-styled
Operating Principle::	Turbine Flow Meter
Availabl Medium ::	Gasoline/diesel/kerosene/water

R9LCD Display Fuel Gauge Fuel Petrol Diesel Fuel Nozzle 420*280*110mm

Product Description

Product Application

Owns many patents, which is developed by Anhui ruiling meter manufacturing co.,ltd. This model of meter fuel nozzle is widely used in industrial and mining enterprises, middle and small oil depot, gas station for transporting diesel and kerosene etc. This Anti- Explosion meter fuel nozzle owns many advantages, for instance, reasonable design, compact structure, small and fine, convenient for carry, high accuracy, big flow rate convenient for usage, easy for maintenance, and so on.

Our design is much more compact, layout is more reasonable,increasing the operation efficiency.

SPECIFICATIONS FOR METER FUEL NOZZLE
Model No.:	A	Accuracy:	±0.5%
Flow range:	20-45L/min	Max.pressure:	4 Bar
Show:	LCD Display	Single Range:	0.0-99999.9L
Suction/Lift:	10m/5m	Accumulative Range:	0-99999L
Total weight:	2.15kg	Range of Price:	0.00-$99.99
Temperature range:	-20°c-50°c	Total Amount Range:	0-$99999
Inhalation caliber:	25mm	Measure Minimum:	5L
Discharge caliber:	20mm	Size:	40032080mm
Medium	Diesel, Kerosene, Water, Methanol and other liquid.

Main Features

For the reason that our First generation mechanical meter fuel nozzle has been copied, our company updated the products series with 10 updated points under the price not increased.

1. More attracting appearance;
2. Increasing the thickness of the shell;
3. Good at Resistant high temperature: 50℃ Test;
4. With functions of integer and non integer quantitative refueling;

5.The standard of excellent accuracy measuring accuracy can reach 0.5%;
6. Professional All of our meter fuel nozzle are Meter LCD type design;
7. Two way control valves to ensure the precise control of a small amount of fuel;

8. Our design is much compact, layout is more reasonable, increasing the operation efficiency;
9. With Double-layer steel wire mesh, wear-resisting, corrosion resistance, pressure resistant tubing;
10. Choosing new type electromagnetic switch,greatly enlarging using safety and stability and prolong the using life.
