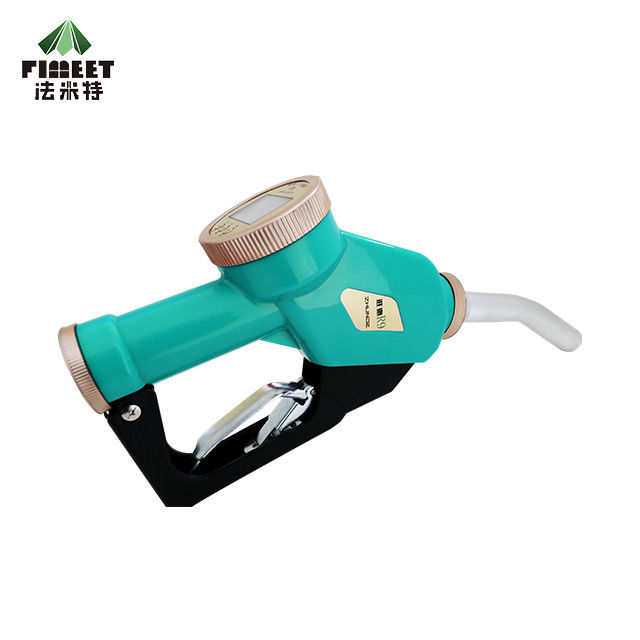

Diesel/Gasoline/Methanol/Water Digital Liquid Oil For MeteIing Fuel Gun Nozzle

Name: Diesel/Gasoline/Methanol/Water Digital Liquid Oil For MeteIing Fuel Gun Nozzle
Brand: ZHUNDE
SKU: BJJ-20-R9, BJJ-20-A(Diesel/Gasoline/Methanol/Water)
Price: 50.00 USD
Availability: InStock
Rating: 5 (190 reviews)

Product Details

Place of Origin: Anhui, China

Brand Name: ZHUNDE

Model Number: BJJ-20-R9, BJJ-20-A(Diesel/Gasoline/Methanol/Water)

Payment & Shipping Terms

Minimum Order Quantity: 10 Pieces

Price: $50.00(10 - 99 Pieces) $45.00(>=100 Pieces)

Packaging Details: WOODEN CASE

Get Best Price

Product Details

Product Description

Highlight:

Type:	Hand Grease Gun, Injector Nozzle	Max. Pressure:	0.8MPa
Size:	50289cm	Place Of Origin:	Anhui, China
Brand Name:	ZHUNDE	Model Number:	BJJ-20-R9, BJJ-20-A(Diesel/Gasoline/Methanol/Water)
Warranty:	6 Months	Color:	Red, Blue Orange, Green
Medium:	Diesel, Water, Gasoline, Methanol	MOQ:	1 Set
Application:	Diesel/Gasoline/Methanol/Water	Material:	Al+Stainless Steel
Name:	Meter Fuel Nozzle	Inside:	Turbine Flow Meter
Max.pressure:	0.8MPa

Type:	Hand Grease Gun, Injector Nozzle
Max. Pressure:	0.8MPa
Size:	50289cm
Place Of Origin:	Anhui, China
Brand Name:	ZHUNDE
Model Number:	BJJ-20-R9, BJJ-20-A(Diesel/Gasoline/Methanol/Water)
Warranty:	6 Months
Color:	Red, Blue Orange, Green
Medium:	Diesel, Water, Gasoline, Methanol
MOQ:	1 Set
Application:	Diesel/Gasoline/Methanol/Water
Material:	Al+Stainless Steel
Name:	Meter Fuel Nozzle
Inside:	Turbine Flow Meter
Max.pressure:	0.8MPa

Diesel/Gasoline/Methanol/Water Digital Liquid Oil For MeteIing Fuel Gun Nozzle

Product Description

Product Application

Owns many patents, which is developed by Anhui ruiling meter manufacturing co.,ltd. This model of meter fuel nozzle is widely used in industrial and mining enterprises, middle and small oil depot, gas station for transporting diesel and kerosene etc. This Anti- Explosion meter fuel nozzle owns many advantages, for instance, reasonable design, compact structure, small and fine, convenient for carry, high accuracy, big flow rate convenient for usage, easy for maintenance, and so on.

Our design is much more compact, layout is more reasonable,increasing the operation efficiency.

SPECIFICATIONS FOR METER FUEL NOZZLE
Model No.:	BJJ-20-R9	Accuracy:	±0.5%
Flow range:	5-60L/min	Max.pressure:	4 Bar
Show:	LCD Display	Single Range:	0.0-99999.9L
Suction/Lift:	10m/5m	Accumulative Range:	0-99999L
Total weight:	2.5kg	Range of Price:	0.00-$99.99
Temperature range:	-20°c-50°c	Total Amount Range:	0-$99999
Inhalation caliber:	25mm	Measure Minimum:	5L
Discharge caliber:	20mm	Size:	50028090mm
Medium	Diesel, Petrol, Water, Methanol and other liquid.

Main Features

For the reason that our First generation mechanical meter fuel nozzle has been copied, our company updated the products series with 10 updated points under the price not increased.

1. More attracting appearance;
2. Increasing the thickness of the shell;
3. Good at Resistant high temperature: 50℃ Test;
4. With functions of integer and non integer quantitative refueling;

5.The standard of excellent accuracy measuring accuracy can reach 0.5%;
6. Professional All of our meter fuel nozzle are Meter LCD type design;
7. Two way control valves to ensure the precise control of a small amount of fuel;

8. Our design is much compact, layout is more reasonable, increasing the operation efficiency;
9. With Double-layer steel wire mesh, wear-resisting, corrosion resistance, pressure resistant tubing;
10. Choosing new type electromagnetic switch,greatly enlarging using safety and stability and prolong the using life.

Detailed Images

Meter Fuel Nozzle Size Map and Internal Structure Show.

Machine Parts

Name: Meter Fuel Nozzle;

Brand: ZHUNDE;

All English Panel;

Show Total Volume and Instantaneous Flow Rate;

Instantaneous Flow Rate is an Important Parameter of Measuring Instrument.

Machine Parts

Built-in High Quality Accessories;

Ensure that Each Kind of Measuring Stability and Accuracy of Meter Fuel Nozzle.

Machine Parts

3 Step Flow Rate Adjustment;

With Locking Function;

Flow Rate can Adjusted Freely.

Internal Structure

Injection Mold;

Electronic Parts;

Industrial-Grade Components;

Turbine Main Parts;

Stainless Steel Materials.

Standard Configuration

1 Set Manual;

1 Set Joint;
1 Screen;

1 Set Meter Fuel Nozzle.
