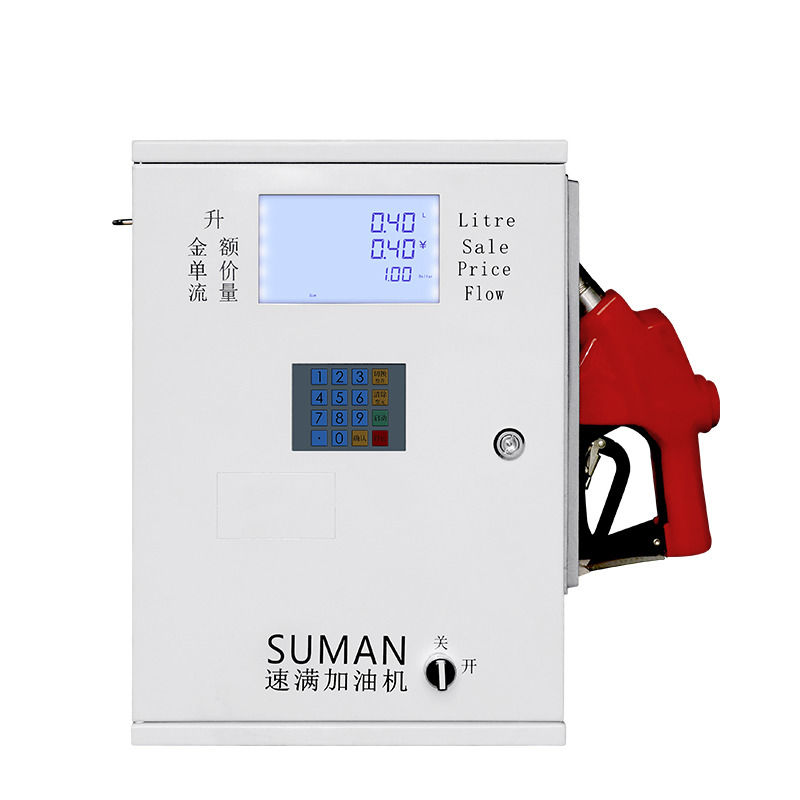

Explosion Proof Diesel Fuel Dispenser For Gas Station BJJ-20-SUMAN

Name: Explosion Proof Diesel Fuel Dispenser For Gas Station BJJ-20-SUMAN
Brand: FIMEET
SKU: BJJ-20-SUMAN
Price: 550.00 USD
Availability: InStock
Rating: 4.6 (181 reviews)

Product Details

Place of Origin: Anhui, China

Brand Name: FIMEET

Model Number: BJJ-20-SUMAN

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: $550.00(1 - 49 Sets) $450.00(>=50 Sets)

Packaging Details: 1 set/wooden box or OEM package

Supply Ability: 10 Set/Sets per Day

Get Best Price

Product Details

Product Description

Highlight:

Place Of Origin:	Anhui, China	Brand Name:	FIMEET
Model Number:	BJJ-20-SUMAN	Available Oil:	Diesel Oil, Kerosene
Accuracy:	Â±0.5%	Voltage:	220v/12v 24v
Flow Range:	(20-80)L/Min	Max.work Pressure:	4 Bar
Lift/Suction:	10m/4m	Inhalation Caliber:	20mm
Discharge Caliber:	20mm	Single Gauge Number:	1-9999L

Place Of Origin:	Anhui, China
Brand Name:	FIMEET
Model Number:	BJJ-20-SUMAN
Available Oil:	Diesel Oil, Kerosene
Accuracy:	Â±0.5%
Voltage:	220v/12v 24v
Flow Range:	(20-80)L/Min
Max.work Pressure:	4 Bar
Lift/Suction:	10m/4m
Inhalation Caliber:	20mm
Discharge Caliber:	20mm
Single Gauge Number:	1-9999L

Explosion Proof Diesel Fuel Dispenser For Gas Station BJJ-20-SUMAN

Product Description

Product Application

Owns many patents, which is developed by Anhui Ruiling Meter Manufacturing Co.,Ltd. This model of fuel dispenser is widely used in industrial and mining enterprises, middle and small oil depot, gas station for transporting diesel and kerosene etc. This Anti- Explosion fuel dispenser owns many advantages, for instance, reasonable design, compact structure, small and fine, convenient for carry, high accuracy, big flow rate convenient for usage, easy for maintenance, and so on.

Our design is much more compact, layout is more reasonable, increasing the operation efficiency.

SPECIFICATIONS FOR GASOLINE FUEL DISPENSER
Model No.:	SUMAN	Accuracy:	±0.5%
Flow range:	(20-80)L/min	Max.pressure:	4 Bar
Voltage:	12v/24v/220V	Single Range:	0.0-99999.9L
Suction/Lift:	10m/5m	Accumulative Range:	0-99999L
Total weight:	75kg	Range of Price:	0.00-$99.99
Temperature range:	-20°c-50°c	Total Amount Range:	0-$99999
Inhalation/Discharge :	DN25/DN20mm	Measure Minimum:	5L
Motor Power	0.6kw	Size:	435410600mm
Medium	Diesel, Kerosene, Water and other liquid.

Main Features

For the reason that our First generation mechanical fuel dispenser has been copied, our company updated the products series with 10 updated points under the price not increased.

1. More attracting appearance;
2. Increasing the thickness of the shell;
3. Good at Resistant high temperature: 50℃ Test;
4. With functions of integer and non integer quantitative refueling;

5. Professional All of our fuel dispenser are Big Flow type design;
6.The standard excellent performance can do 3 Hours Continuous Work;
7. Two way control valves to ensure the precise control of a small amount of fuel;

8. Our design is much compact, layout is more reasonable, increasing the operation efficiency;
9. With Double-layer steel wire mesh, wear-resisting, corrosion resistance, pressure resistant tubing;
10. Choosing new type electromagnetic switch,greatly enlarging using safety and stability and prolong the using life.

Factory Show

Canton Fair

120th Canton Fair

Meet every year of Canton Fair

121th Canton Fair

and Still to be continued......

122th Canton Fair

Detailed Images

Kerosene Fuel Dispenser Size Map and Internal Structure Show.

Machine Parts

Name: Big Flow Diesel/Kerosene Fuel Dispenser;

Brand: FIMEET;

6 Digits LCD Display;

Show Unit Price, Total Amount, Total Volume.

Machine Parts

Lock With Metal Key;

All English and Arabic Numeral Panel;

Print Receipts can be Design for customer Demand;

3 Version of Computer Motherboards, Work Independently.

Machine Parts

4 Vat;

Big Flow Rate;

Automatic Stop, When Fuel Tank Full.

Internal Structure

Big Filter;

Weld Large Diameter Piping;

Piston Flowmeter, High Accuracy.

Internal Structure

Hang Nozzle Rack,
Convenient to Put Fuel Nozzle;

Front and Back Door Both can be Open;

Convenient for Maintenance and Inspection.

Standard Configuration

1 Set Manual;
5M Inlet Pipe;
5M Output Pipe;
1 Set 11A Automatic Fuel Nozzle.
