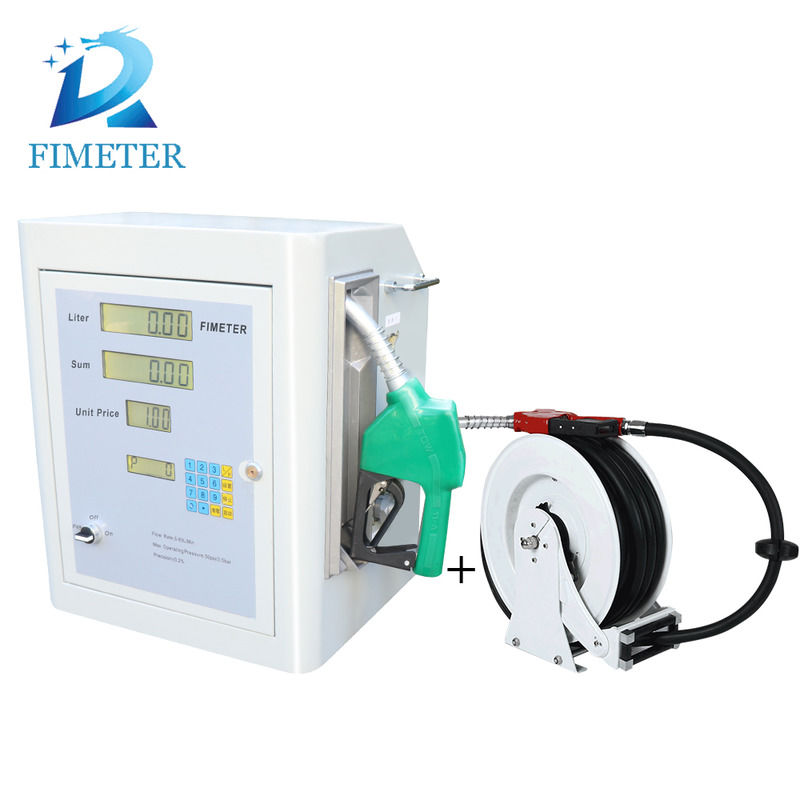

Dose No Pump Gasoline Fuel Dispenser BJJ-20-AH2 Low Pressure

Name: Dose No Pump Gasoline Fuel Dispenser BJJ-20-AH2 Low Pressure
Brand: FIMETER
SKU: BJJ-20-AH2
Price: 720.00 USD
Availability: InStock
Rating: 4.7 (146 reviews)

Product Details

Place of Origin: Mexico

Brand Name: FIMETER

Model Number: BJJ-20-AH2

Payment & Shipping Terms

Minimum Order Quantity: 1 Piece

Price: $720.00(1 - 9 Pieces) $660.00(>=10 Pieces)

Packaging Details: Non-fumigation wooden case

Get Best Price

Product Details

Product Description

Highlight:

Brand Name:	FIMETER	Model Number:	BJJ-20-AH2
Place Of Origin:	Mexico	Pressure:	Low Pressure
Structure:	PISTON PUMP	Usage:	Oil
Application:	Metering	Power:	Electric, 0.5KW
Fuel:	Diesel	Theory:	Electromagnetic Pump
Standard Or Nonstandard:	Standard	Flow Rate:	20-60 L/min
Accuracy:	0.2%	Voltage:	12/24V
Max Pressure:	3Bar

Brand Name:	FIMETER
Model Number:	BJJ-20-AH2
Place Of Origin:	Mexico
Pressure:	Low Pressure
Structure:	PISTON PUMP
Usage:	Oil
Application:	Metering
Power:	Electric, 0.5KW
Fuel:	Diesel
Theory:	Electromagnetic Pump
Standard Or Nonstandard:	Standard
Flow Rate:	20-60 L/min
Accuracy:	0.2%
Voltage:	12/24V
Max Pressure:	3Bar

Dose No Pump Gasoline Fuel Dispenser BJJ-20-AH2 Low Pressure

Product Description

Product Application

Owns many patents, which is developed by Anhui ruiling meter manufacturing co.,ltd. This model of fuel dispenser is widely used in industrial and mining enterprises, middle and small oil depot, gas station for transporting diesel and kerosene etc. This Anti- Explosion fuel dispenser owns many advantages, for instance, reasonable design, compact structure, small and fine, convenient for carry, high accuracy, big flow rate convenient for usage, easy for maintenance, and so on.

Our design is much more compact, layout is more reasonable,increasing the operation efficiency.

SPECIFICATIONS FOR GASOLINE FUEL DISPENSER
Model No.:	AH2	Accuracy:	±0.2%
Flow range:	20-60L/min	Max.pressure:	4 Bar
Voltage:	DC 12v/24v	Single Range:	0.0-99999.9L
Suction/Lift:	25m/25m	Accumulative Range:	0-99999L
Total weight:	48kg	Range of Price:	0.00-$99.99
Temperature range:	-20°c-50°c	Total Amount Range:	0-$99999
Inhalation caliber:	25mm	Measure Minimum:	5L
Discharge caliber:	20mm	Size:	550450380mm
Medium	Gasoline, Petrol, Diesel, Kerosene, Water, Methanol and other liquid.

Detailed Images

No Pump Gasoline Fuel Dispenser Size Map and Internal Structure Show.

Machine Parts

Name: Anti-Explosion No Pump Gasoline Fuel Dispenser;

Brand: FIMETER;

6 Digits LCD Display;

Show Unit Price, Total Amount, Total Volume.

Machine Parts

Lift Handle;

All English and Arabic Numeral Panel;

3 Version of Computer Motherboards, Work Independently;

All-Round Visual Mirror, Monitoring Fuel Volume At Any Time.

Machine Parts

12V 24V Battery Power;

Use with Truck Battery also.

Internal Structure

F Class Insulation;

Without Pump Design;

Solenoid Valve Control System;

High Accuracy 4 Cylinder Piston Flowmeter.

Standard Configuration

1 Set Manual;

5M Inlet Pipe;

5M Output Pipe;

1 Set 11A Automatic Fuel Nozzle.

Packaging
Size	61 * 75 * 98CM
Weight	85 KGS
Packaging Details	The normal package is wooden box(Size: LWH). If export to European countries,the wooden box will be fumigated. Package also can according to customer special requirements.
